Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution

Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution

Miejsce pochodzenia Szanghaj
Nazwa handlowa Gofun
Orzecznictwo ISO, CE certification
Numer modelu GFM-TPL
Szczegóły produktu
Pojemność:
Dostosowane
Funkcja:
Wysoka wydajność, tańszy koszt
Stosowanie:
Linia produkcyjna pasty pomidorowej
Woltaż:
Dostosowane
Gwarancja:
1 rok
Zapewniona obsługa posprzedażna:
Inżynierowie dostępni do serwisowania maszyn za granicą
Typ:
Linia przetwarzania pod klucz
Waga:
Na podstawie określonych maszyn
Tworzywo:
SUS304
Stan:
nowy
Warunki płatności i wysyłki
Minimalne zamówienie
1 ZESTAW
Cena
negotiable
Szczegóły pakowania
Międzynarodowy standardowy pakiet wysyłki
Czas dostawy
90 dni
Zasady płatności
T/T, L/C, Western Union
Możliwość Supply
20 zestawów rocznie
Opis produktu
High-Capacity Tomato Sauce Processing Line
Automated ketchup production lines, featuring core equipment made of food-grade SUS304 stainless steel, offer significant benefits in industrial production. These lines incorporate automatic cleaning, sorting, pulping, concentrating, sterilizing, and filling processes, reducing manual involvement to lower labor costs and operational mistakes considerably.
With adaptable capacity ranging from 1 to 10 tons per hour, catering to both small and large facilities, these lines maintain consistent product quality by accurately regulating process parameters. This precision helps in preserving the authentic taste and nutrients of tomatoes effectively.
Complete Production Process
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

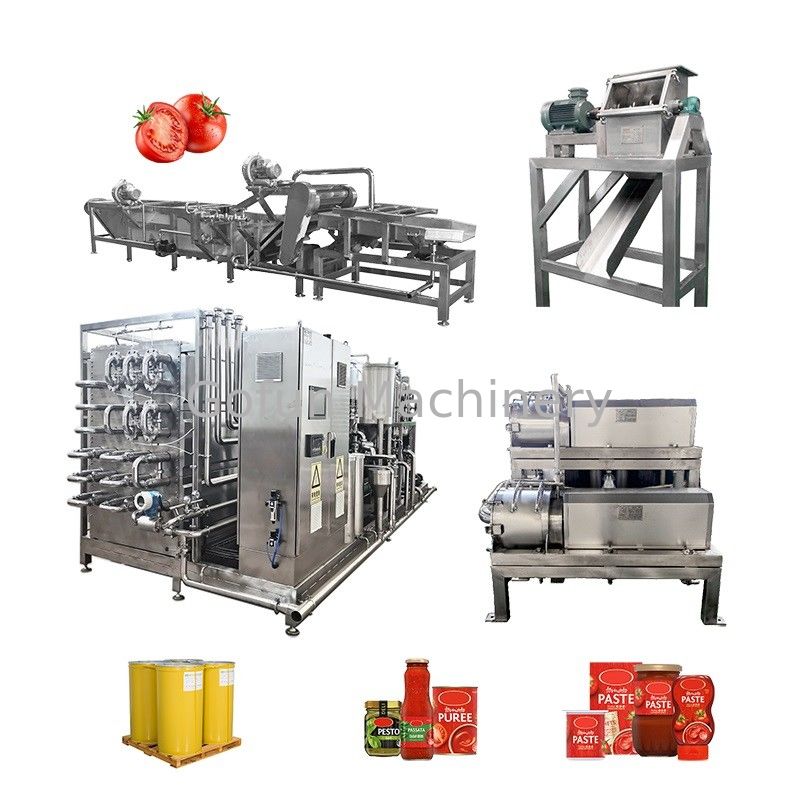

Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 0
Key Features
  • Food-grade 304 stainless steel construction meeting FDA/CE standards
  • Intelligent temperature control (±1℃ precision) for consistent quality
  • Energy-saving design reducing operational costs by 25-30%
  • Customizable capacity from 500kg/h to 10t/h
  • PLC smart control system for automated operation
  • Easy-to-clean structure with minimal maintenance requirements
  • Versatile for various sauce types and packaging formats
Technical Specifications
Product Name One-stop solution for tomato processing line
Fresh Fruit Input Capacity 500kg per hour ~ 25 tons per hour
Raw Material Fresh tomato, tomato paste
End Product Tomato paste, tomato sauce or ketchup, tomato juice, etc
Final Product Brix 28%~30%, 36%~38%
Main Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Processing Functions
Raw Material Preparation: A vibrating screen eliminates defective tomatoes and impurities, while high-pressure bubble cleaning with brush rollers effectively cleans surfaces. Gentle conveying methods prevent skin damage.
Crushing and Pulp Extraction: A spiral crusher operates in a low-temperature environment to retain nutrients. A double-stage pulping machine separates pulp from peel and seeds.
Concentration and Pasteurization: Vacuum concentration at 60-70°C eliminates excess water while preserving lycopene. A tubular sterilizer employs 121°C rapid sterilization to eradicate microorganisms.
Final Product Packaging: An aseptic filling system prevents secondary contamination through capping, sealing, labeling, and boxing processes. Optional metal and weight detection systems are available.
Final Products & Packaging
Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 1 Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 2 Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 3
Available Packaging Options
  • Aseptic bags
  • Metal cans
  • Sachets
  • Stand-up pouches
  • PP containers
  • Glass bottles
  • PET bottles
  • Gable tops
Comprehensive Solutions
  • Technical consultation
  • Customized proposal design
  • Equipment manufacturing
  • Installation, commissioning, and on-site training
  • One-year after-sales guarantee
  • Lifelong service
  • Package design and purchasing support
After-Sales Service
  • Debugging equipment
  • Oversea technical support
  • Oversea equipment maintenance
  • English speaking engineers available
Additional Services
  • Technical support
  • Marketing suggestion
  • Final packing suggestion and design
  • Factory building and design
Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 4 Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 5

Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 6
